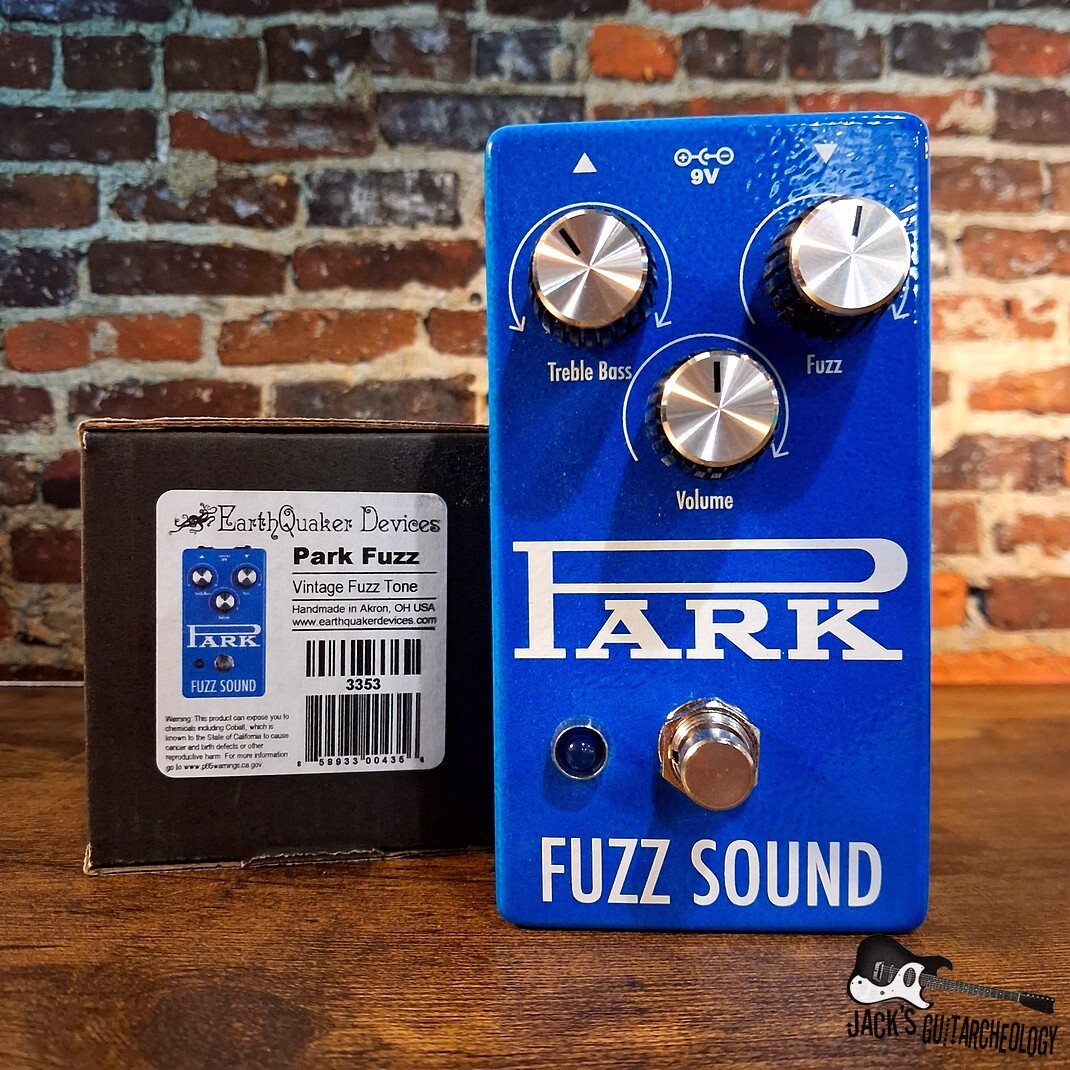

EarthQuaker Devices Park Fuzz Sound Vintage Germanium Fuzz Tone *NEW* (Blue)
|
|
|
|
|
|
|
|
Jack's Guitarcheology is an official EarthQuaker Devices dealer.
From EarthQuaker Devices:
THIS DEVICE IS NO LONGER IN PRODUCTION
Park Fuzz Sound
Vintage Germanium Fuzz Tone
Park Amplifiers and EarthQuaker Devices have teamed up to bring you a faithful recreation of the original Park Fuzz Sound! While it retains the original sounds, there are several modern upgrades to improve performance, reduce extraneous background noise and add versatility:
- Metal film resistors and caps for quieter performance
- NOS matched germanium transistors for consistent, reliable tones
- Wider fuzz range, more than twice the original
- Smaller footprint, true bypass switching with LED indication and power supply compatible
Controls
1. Treble/Bass: This is the tone control, thicker tones to the right, brighter to the left.
2. Volume: This is the level control, louder to the right, quieter to the left.
3. Fuzz: This is the gain control, more fuzz to the right, less to the left.
Tech Specs
Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 3 mA
Input Impedance: 100 kΩ
Output Impedance: <1 kΩ
Switching
This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.
Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
Got questions? Shoot me a message, I love nerding out with other gearheads!
